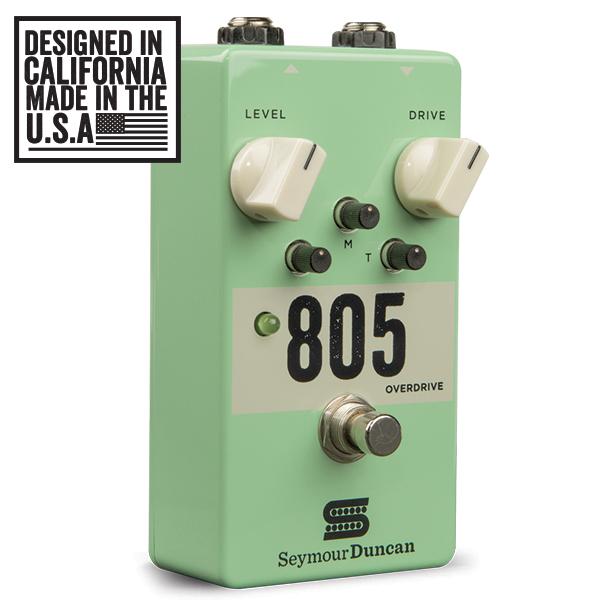

Seymour Duncan 805 Overdrive

Clicca qui per vedere la demo

Specifications:

  • Distortion Circuitry: Glass diode, back-to-back stack.
  • Bypass: True bypass
  • Gain Control Range: 8dB to 36dB.

EQ Center Frequencies:

  • Bass - 90 Hz +/- 11dB
  • Mid - 750 Hz +/- 11dB
  • Treble - 2.1 kHz +/- 12dB

Noise:

  • Minimum gain, 20 to 20kHz - 112dBV
  • Minimum gain, 400 to 20kHz - 114dBV
  • Maximum gain, 20 to 20kHz - 97.5dBV
  • Maximum gain, 400 to 20kHz - 98 dBV

THD @10mVrms input @ 1 kHz with 12 dB of gain: 0.15%

  • Max Output before Saturation: 0.6Vrms
  • Input Impedance: 470k Ohms
  • Output Impedance: 1k Ohms
  • Power: 9V battery or external 9 to 18V Regulated DC Adapter (center negative)
  • Current consumption: 4.5mA
  • Dimensions: 2.61" X 4.90" X 1.45".

Proprietà
N° Art. 805-OD
Marca Seymour Duncan
Unità Pezzo
PVI / cadauno CHF 192.00
